Fichier .dwg en format 2013, disponible en version antérieure sur demande (lamatierebuilderbrothers@mailo.com)



Contenu du dossier de plan Earthship inspiré :

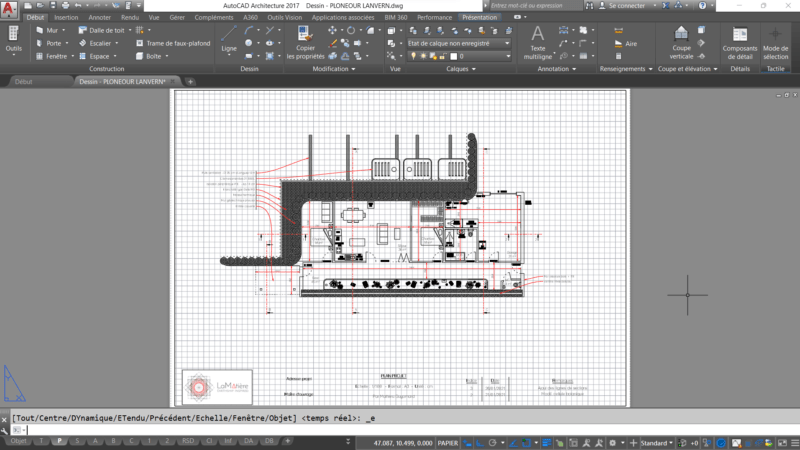

  • Plan projet

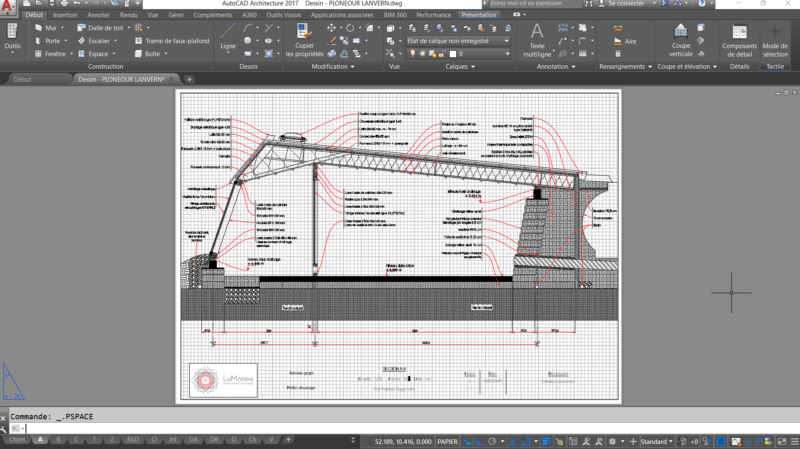

  • Section A-A
  • Section B-B
  • Section C-C
  • Section 1-1
  • Section 2-2
  • Plan de terrassement
  • Plan réseaux sous dallage
  • Plan de fondation et d’infrastructure
  • Plan de cloisonnement
  • Plan mur bois porteur
  • Plan de charpente
  • Détail charpente A-A
  • Détail charpente B-B
  • Elevation verrière
